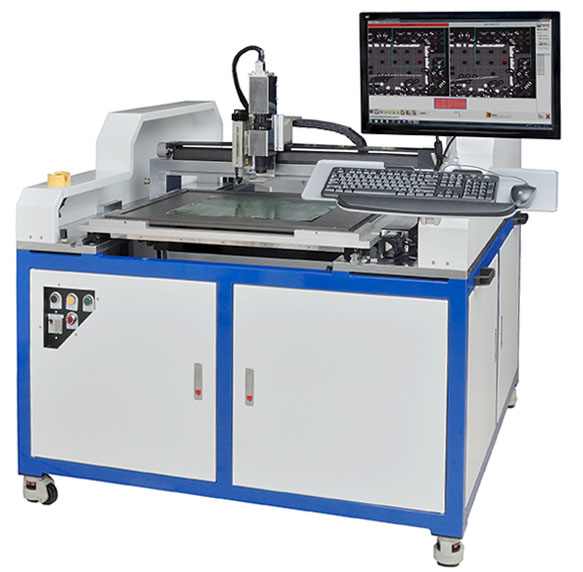

Finished / semi-finished product inspection (printed circuit board)
Parameter setting is easy, set the parameters time is less than 5 minutes, and get the new part no. to start inspection, no more than 5 minutes.
Larger system dimensionLarger system dimension can inspect panel, inspect size of 880 x 700 mm.
Inspection the type of defectTo determine defect by user's parameters and system embedded logic. Simple operation and no need reference required.
Function of laser marking defectsMarking defect distribution location, laser indicator, output defect distribution map, coordinate's file.
Inspect defects on the PCB by optical lens capturing system. The inspection system can reduce damages and promote product quality.
Analog microscope to take the principle of image, the use of high-energy front projection, side projection light source to be detected, through the precision optical lens group, focusing to the top of the high-resolution sensor system to obtain images, and then use the computer to convert the image into digital values, then use the following model to identify defects.
