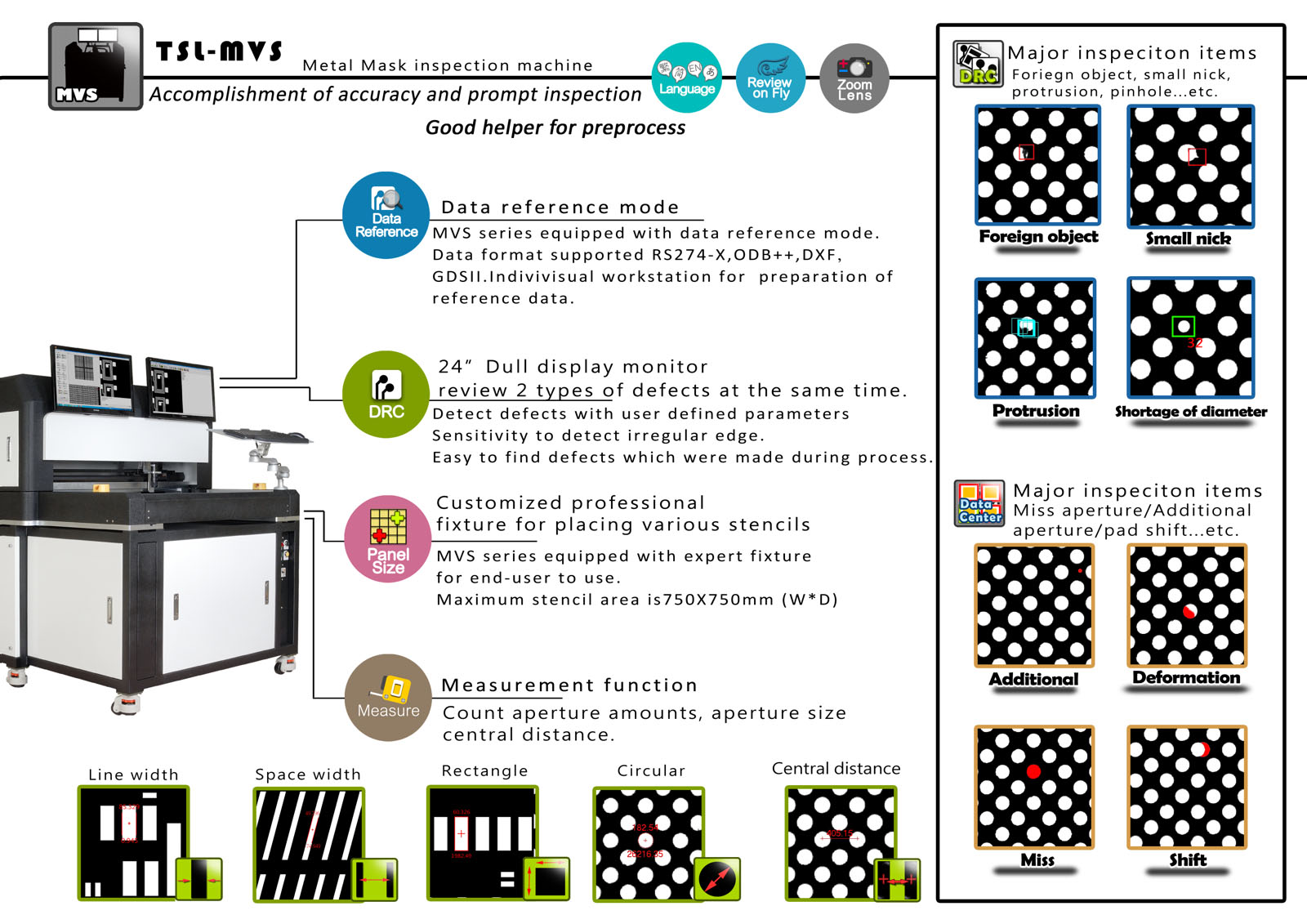

Inspect defects on the metal mask/stencil by optical lens capturing system. The inspection system can reduce damages and promote product quality. With adjustable magnification lens, you can adjust the magnification for different specifications of the sample, the application is more extensive.
Applicable aperture: 30um up
Zoomable lens to fit various aperture size.
Foreign object , small nick, protrusion, shortage of diameter, etc.
Foreign object , small nick, protrusion, shortage of diameter, etc.
Max Inspection area: 750mm x 750mm x 30mm
Line width, Space width, Circular, Rectangle, Rotated Rectangle, Central distance, Gap Distance, Long Distance.
Traditional Chinese, Simplified Chinese, Japanese and English
